1
CVE401
Civil Engineering Practice
Lecture 10: Case Studies
2CVE 401 - Civil Engineering Practice
Case Studies
Foundations
Baze University
4/11/2018
2

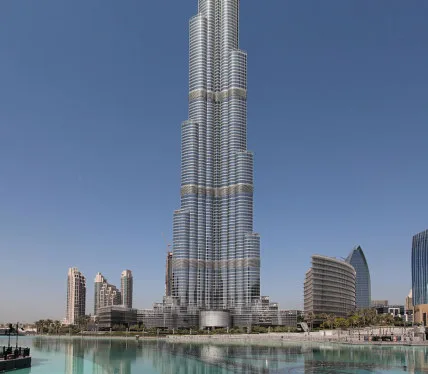

Burj Khalifa
• The Burj Khalifa is the tallest building in the world.
– Height: 828 m (2,717 ft)
– Floor count: 163 above ground
• 154 usable floors
• 9 maintenance floors including below-
ground parking levels
• Main Construction Materials:
– Reinforced Concrete
– Steel
– Aluminum
– Glass
• Floor Area: 309,473m² (3,331,100 ft²)
3CVE 401 - Civil Engineering Practice
Burj Khalifa
• Burj Khalifa is mixed-use with commercial and residential functions.
• Timeline:
– Construction started on 6
th
January 2004
– Construction was completed on 2
nd
December 2009
– Building opened on 4
th
January 2010
• Project Team:
– Developer: Emaar Properties
– Architect: Skidmore, Owings & Merrill LLP
– Structural Engineer: Skidmore, Owings & Merrill LLP
– Contractors: Several
4CVE 401 - Civil Engineering Practice
4/11/2018
3
Project Overview

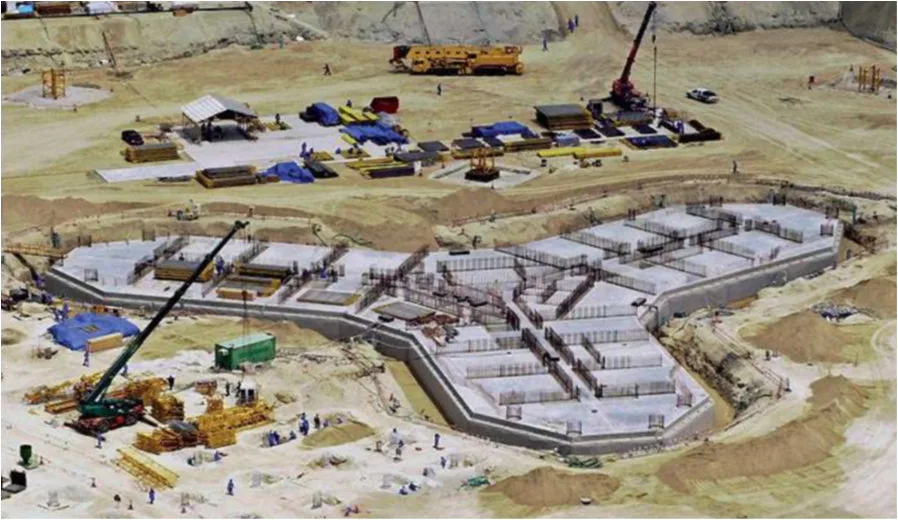

• The Burj Dubai project in Dubai comprises the construction of an over
160-story high rise tower, with a podium development around the base of
the tower, including a 4-6 story garage.

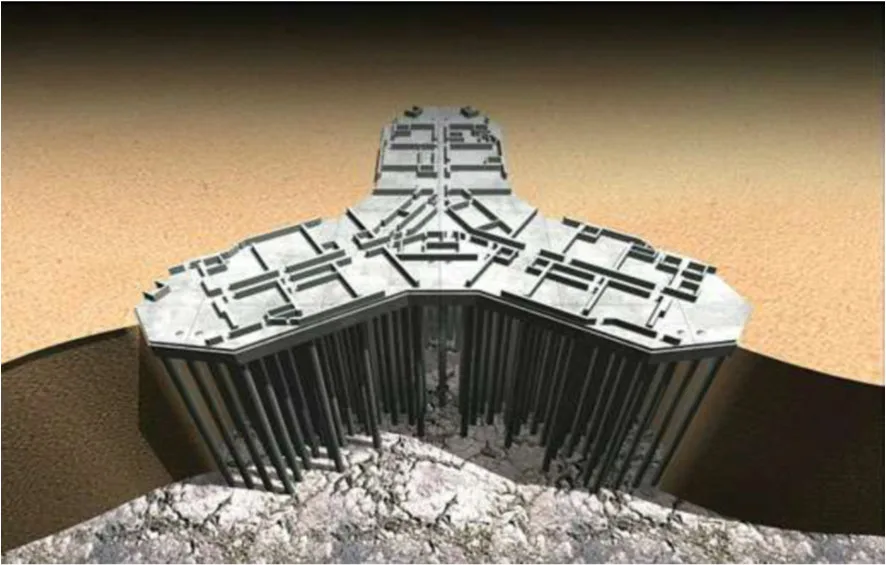

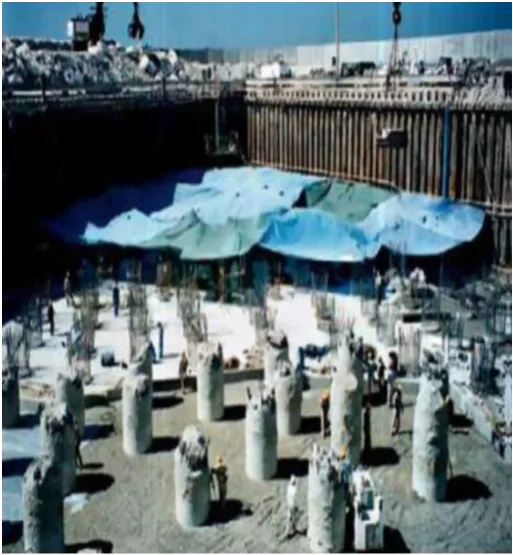

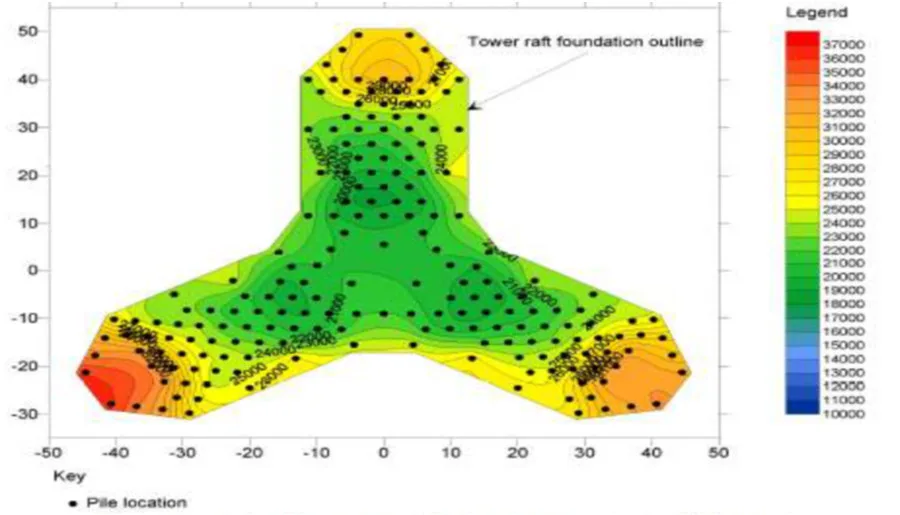

• It is founded on a 3.7m thick raft supported on bored piles:
– 1.5m in diameter
– Extending approximately 50m below the base of the raft.
5CVE 401 - Civil Engineering Practice

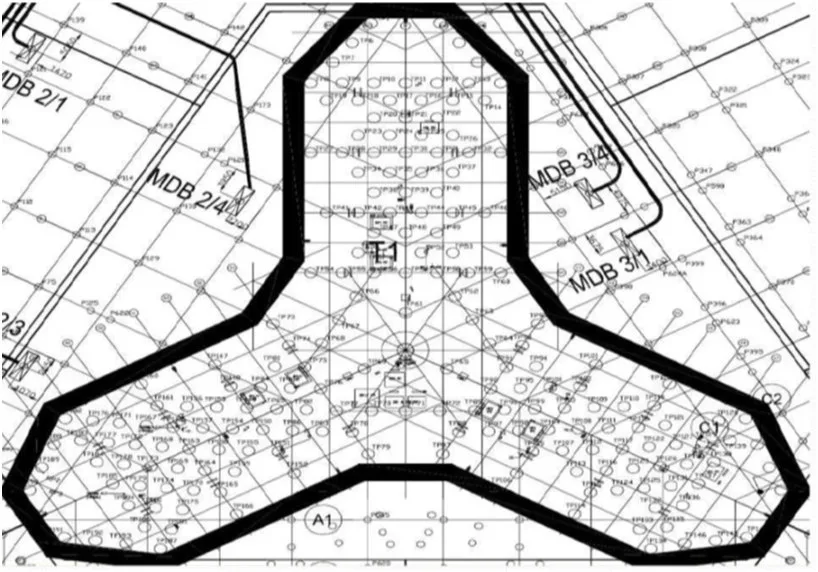

Project Overview

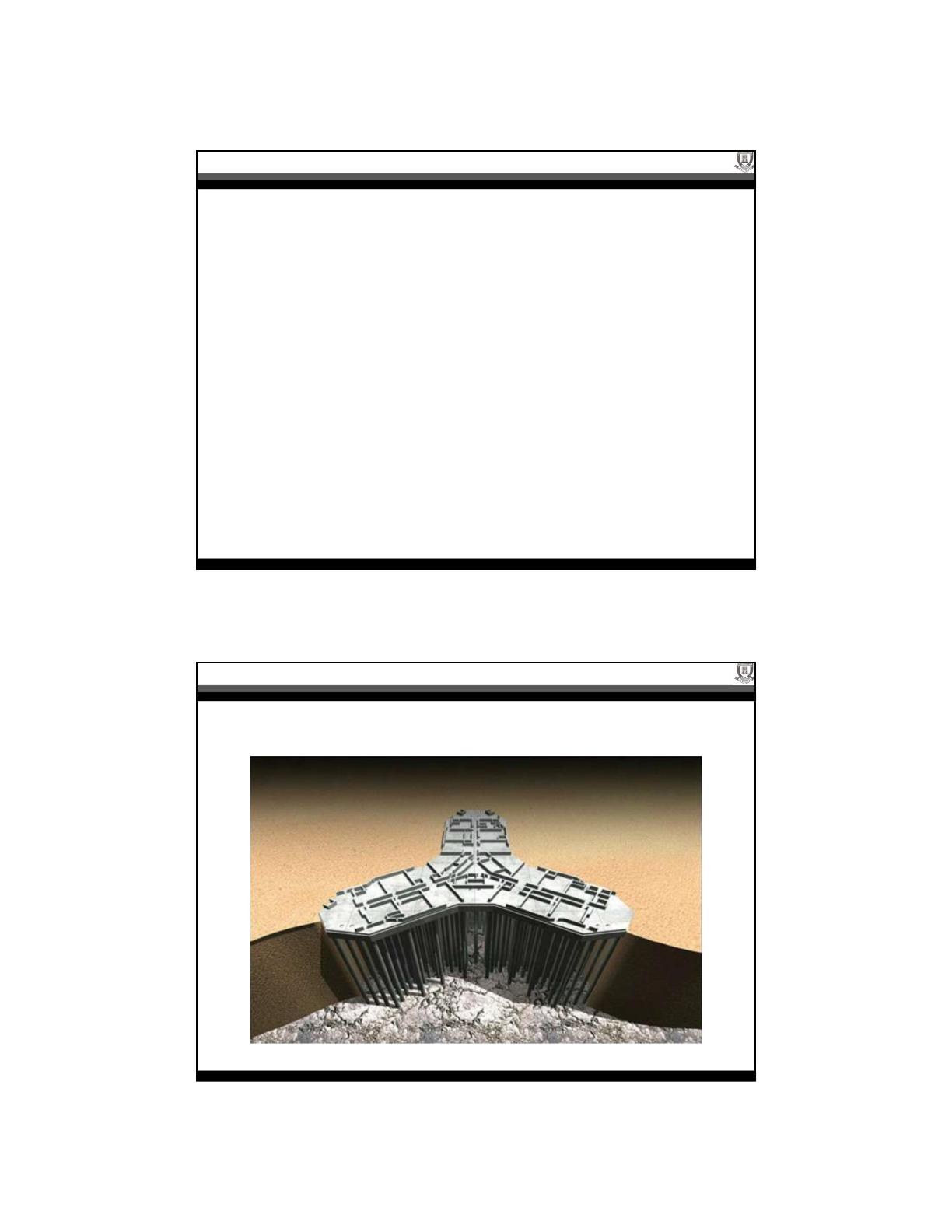

6CVE 401 - Civil Engineering Practice
/ 17
End of Document
134

Figures

CVE 401 Civil Engineering Practice: Case Studies on Foundations — Case Studies
CVE 401 Civil Engineering Practice: Case Studies on Foundations — Case Studies
CVE 401 Civil Engineering Practice: Case Studies on Foundations — Burj Khalifa
CVE 401 Civil Engineering Practice: Case Studies on Foundations — Burj Khalifa
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice
CVE 401 Civil Engineering Practice: Case Studies on Foundations — Case Studies
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice

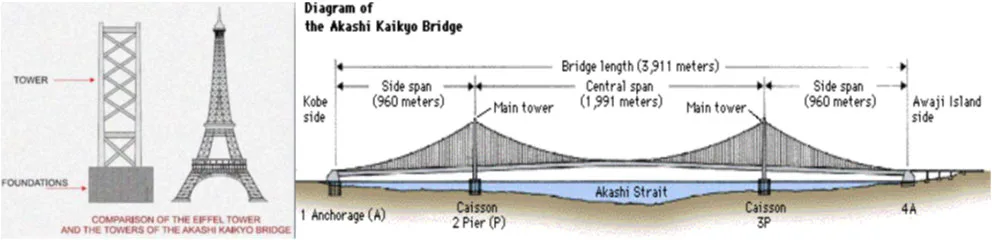

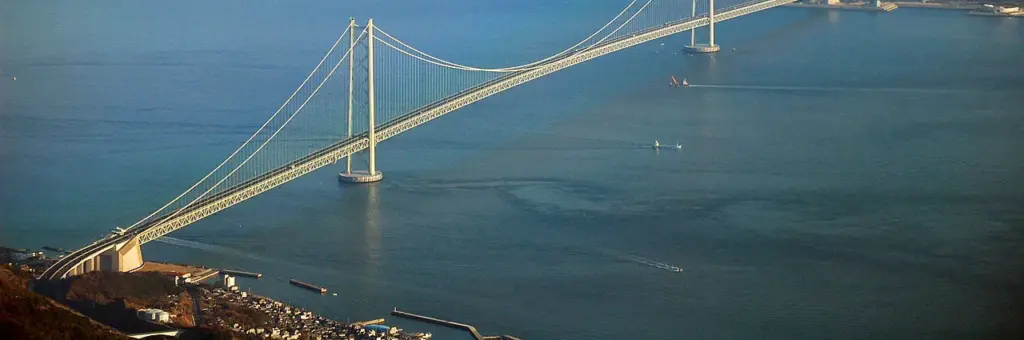

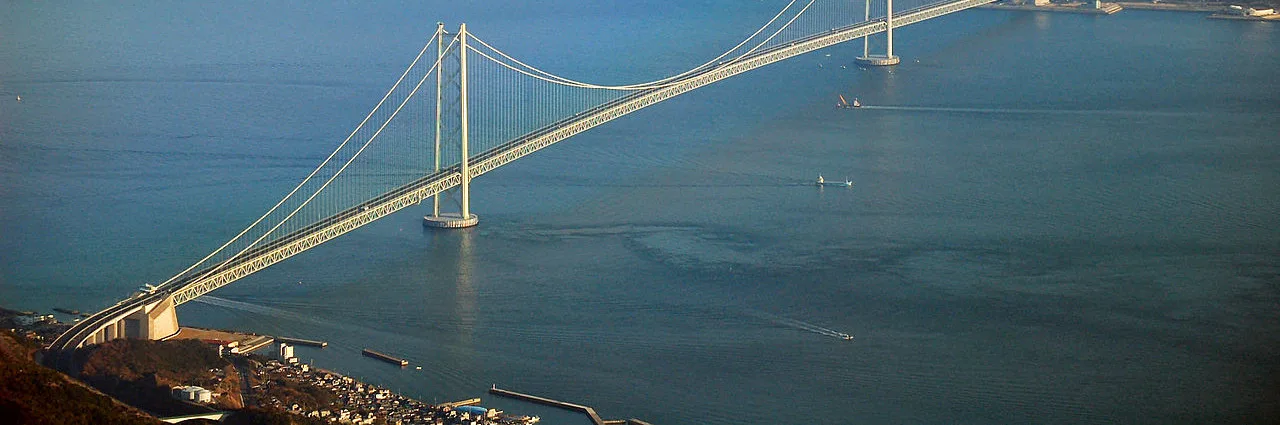

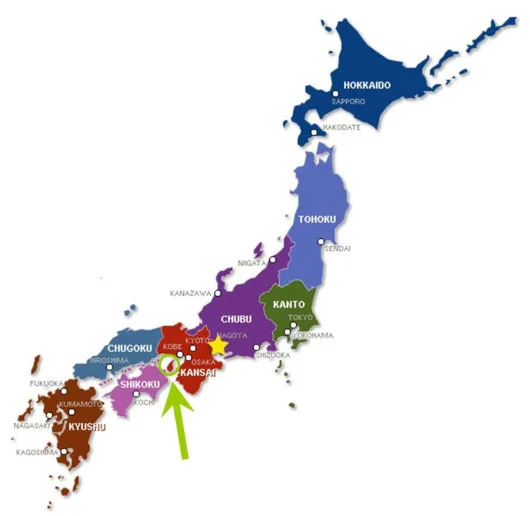

CVE 401 Civil Engineering Practice: Case Studies on Foundations — The Akashi Kaikyō Bridge
CVE 401 Civil Engineering Practice: Case Studies on Foundations — The Akashi Kaikyō Bridge

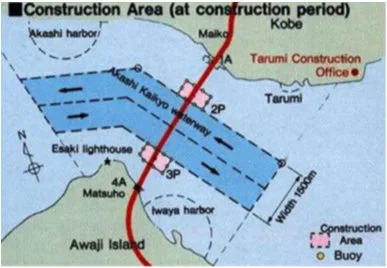

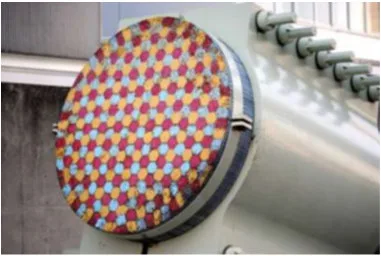

Advanced technology to prevent rusting and corrosion.

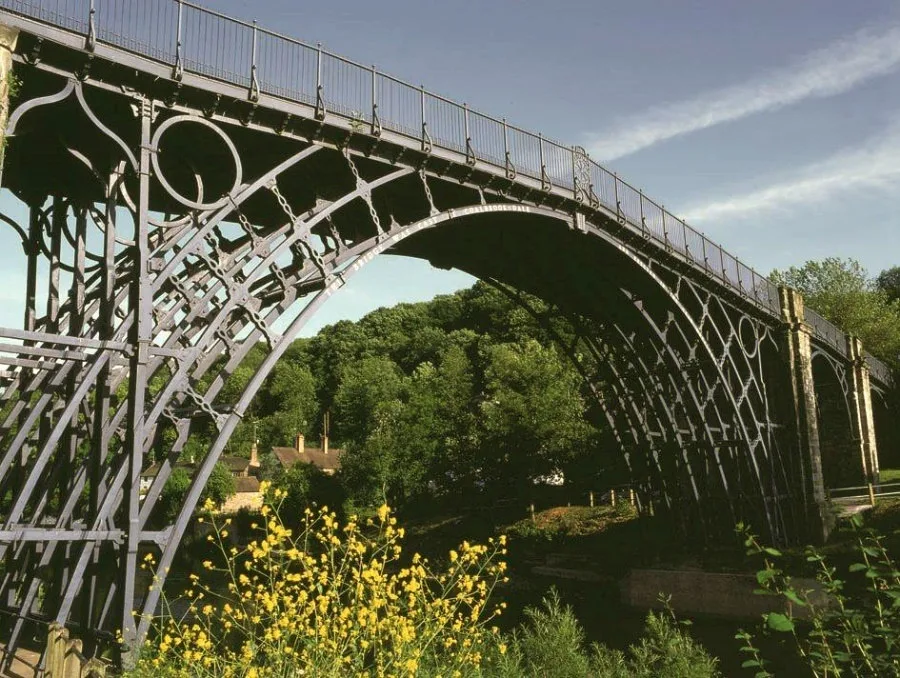

CVE 401 Civil Engineering Practice: Case Studies on Foundations — 1. Materials
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice

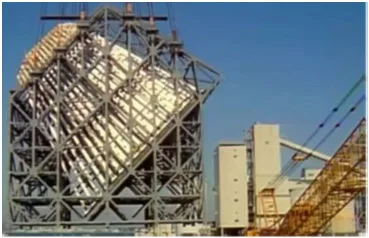

CVE 401 Civil Engineering Practice: Case Studies on Foundations — 2. The Suspension Bridge
CVE 401 - Civil Engineering Practice

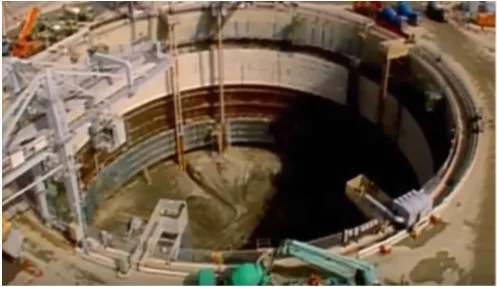

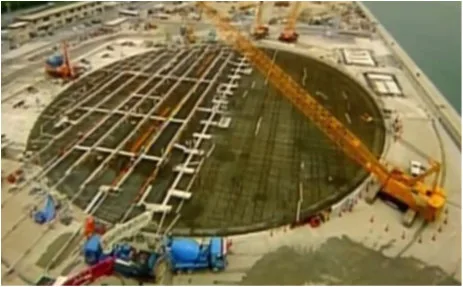

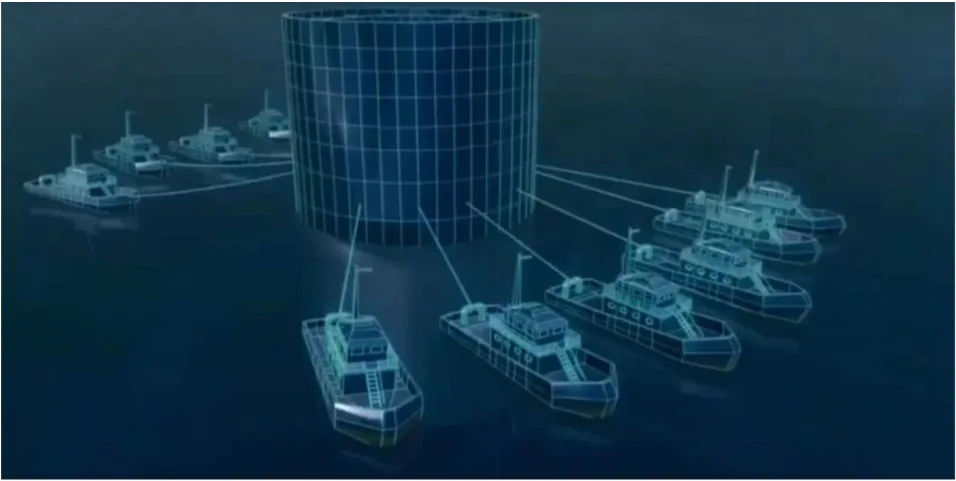

First: Sink it into the water up to the bed
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice

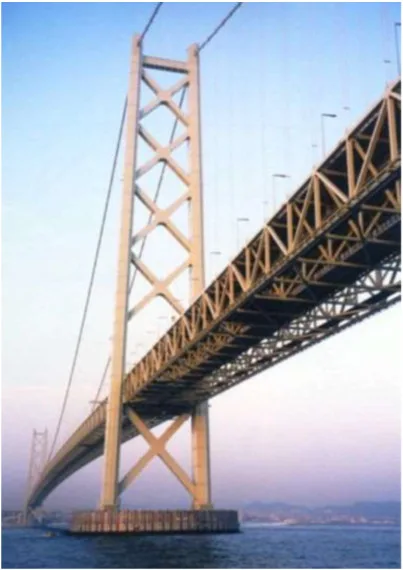

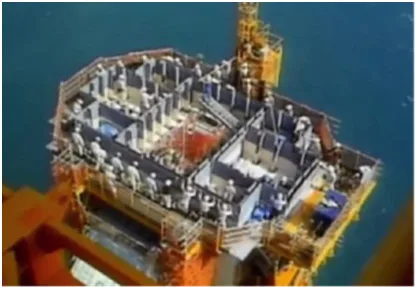

CVE 401 Civil Engineering Practice: Case Studies on Foundations — 5. Taller Towers
CVE 401 - Civil Engineering Practice
CVE 401 Civil Engineering Practice: Case Studies on Foundations — 5. Taller Towers
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice
CVE 401 Civil Engineering Practice: Case Studies on Foundations — 6. Wind Resistance
CVE 401 - Civil Engineering Practice
CVE 401 - Civil Engineering Practice

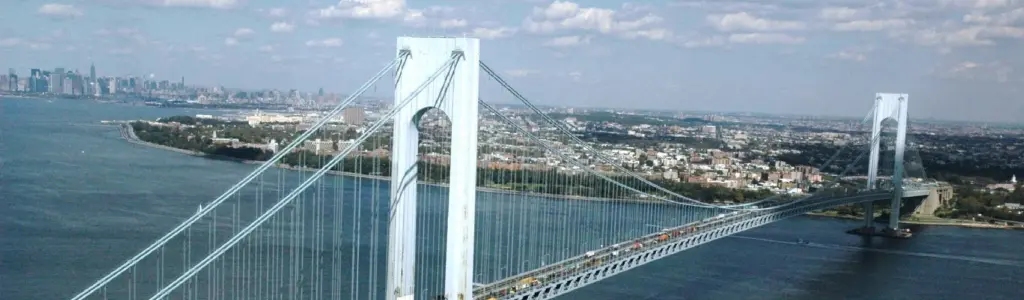

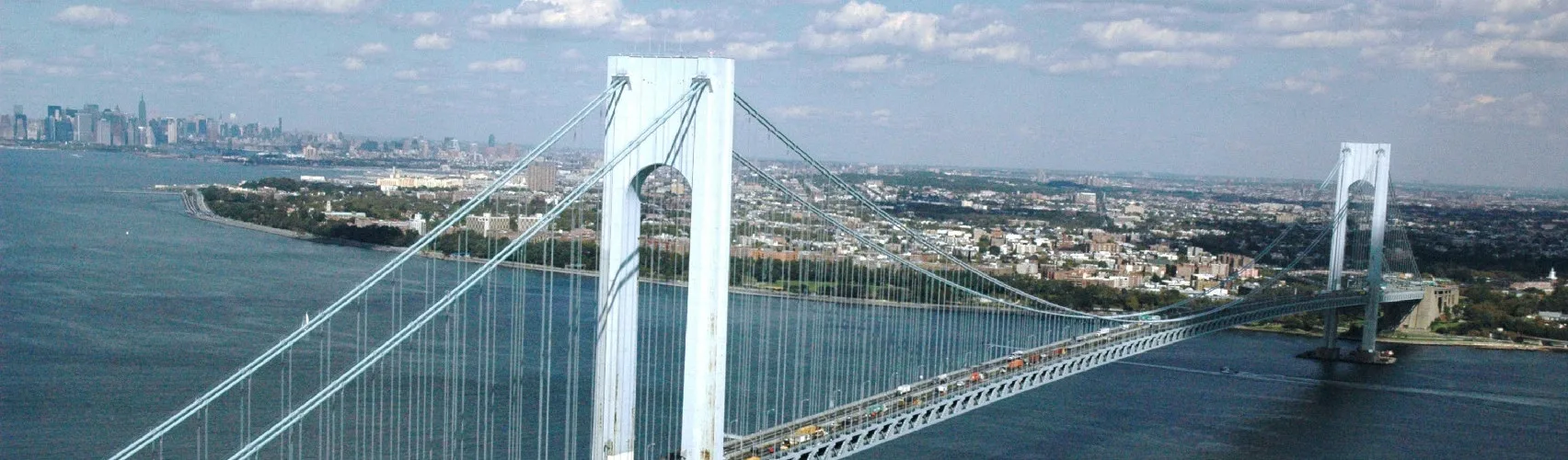

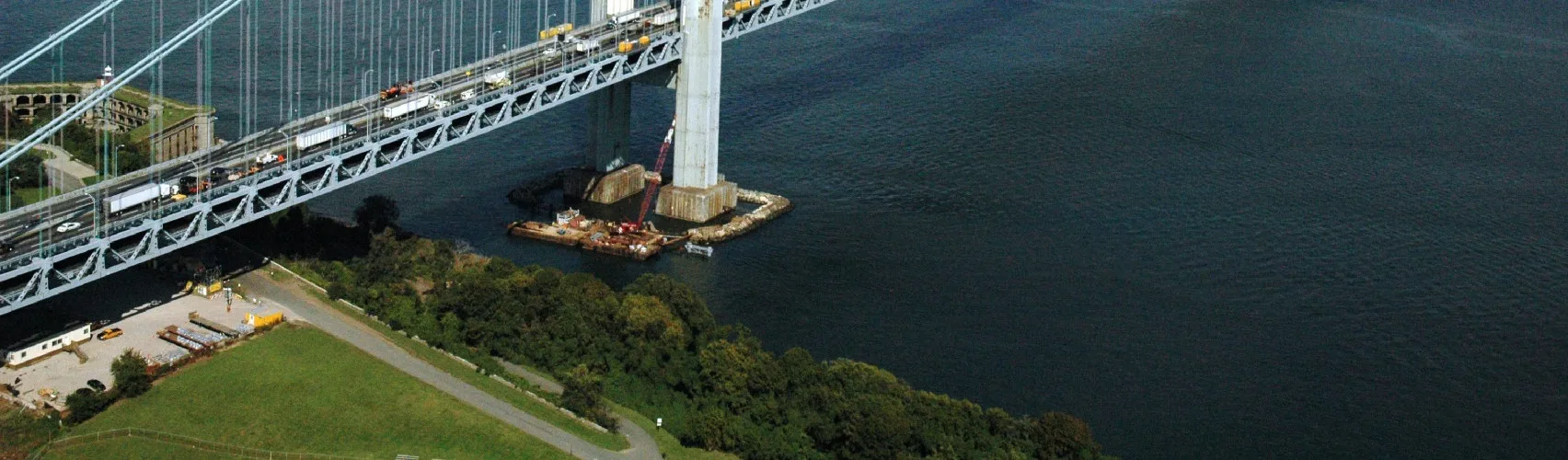

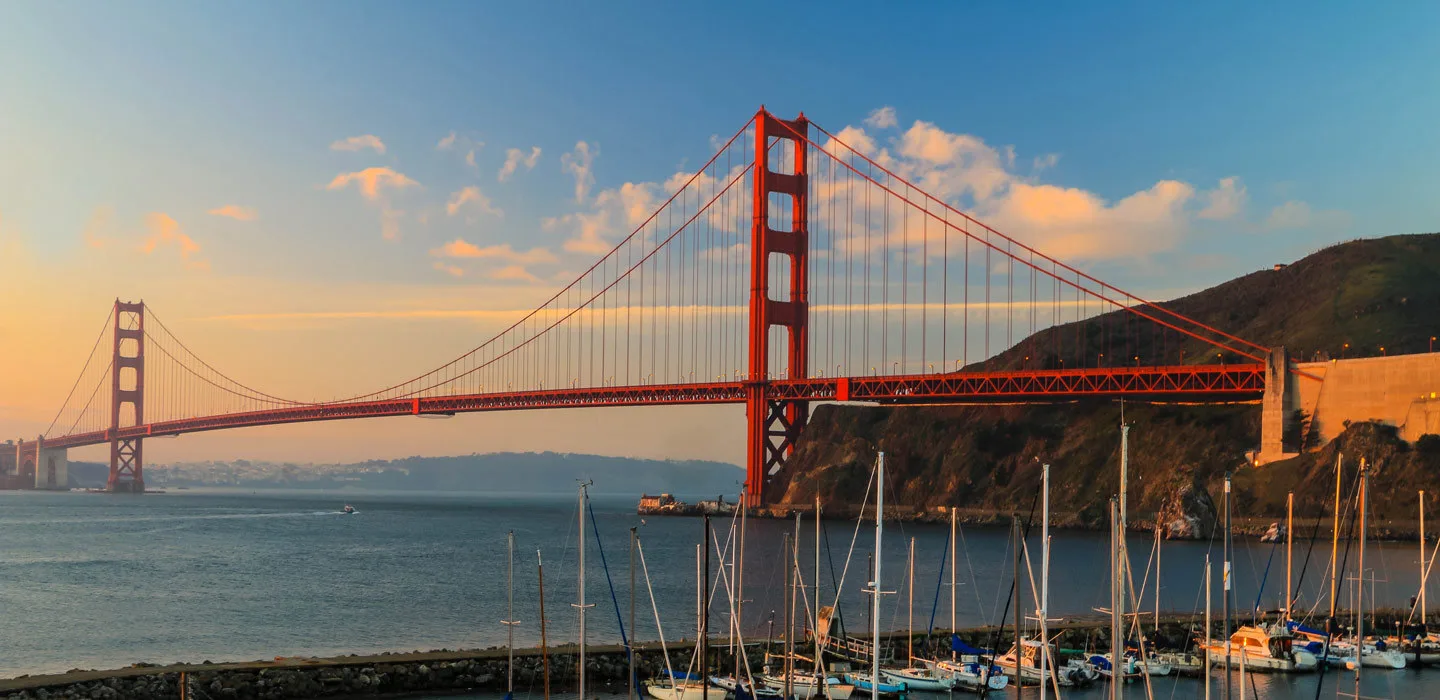

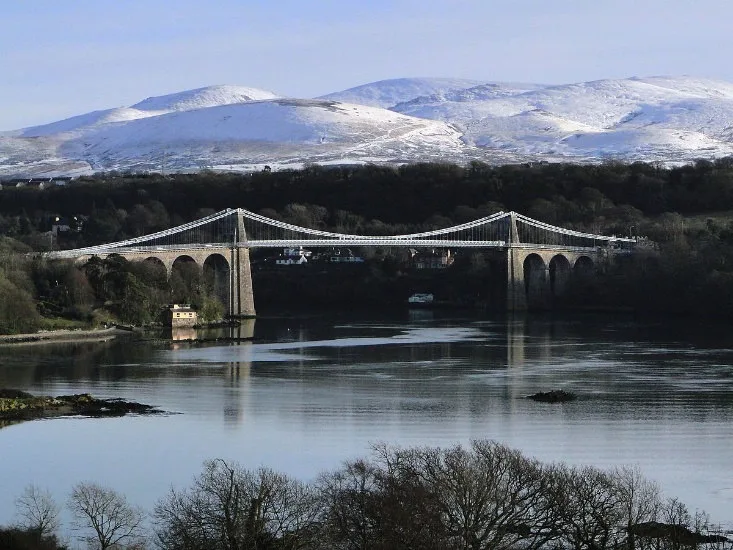

CVE 401 Civil Engineering Practice: Case Studies on Foundations — Other Suspension Bridges
CVE 401 - Civil Engineering Practice
CVE 401 Civil Engineering Practice: Case Studies on Foundations — Other Suspension Bridges
CVE 401 - Civil Engineering Practice
