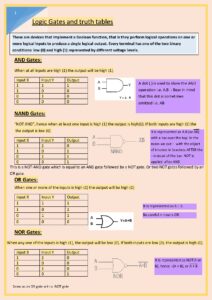

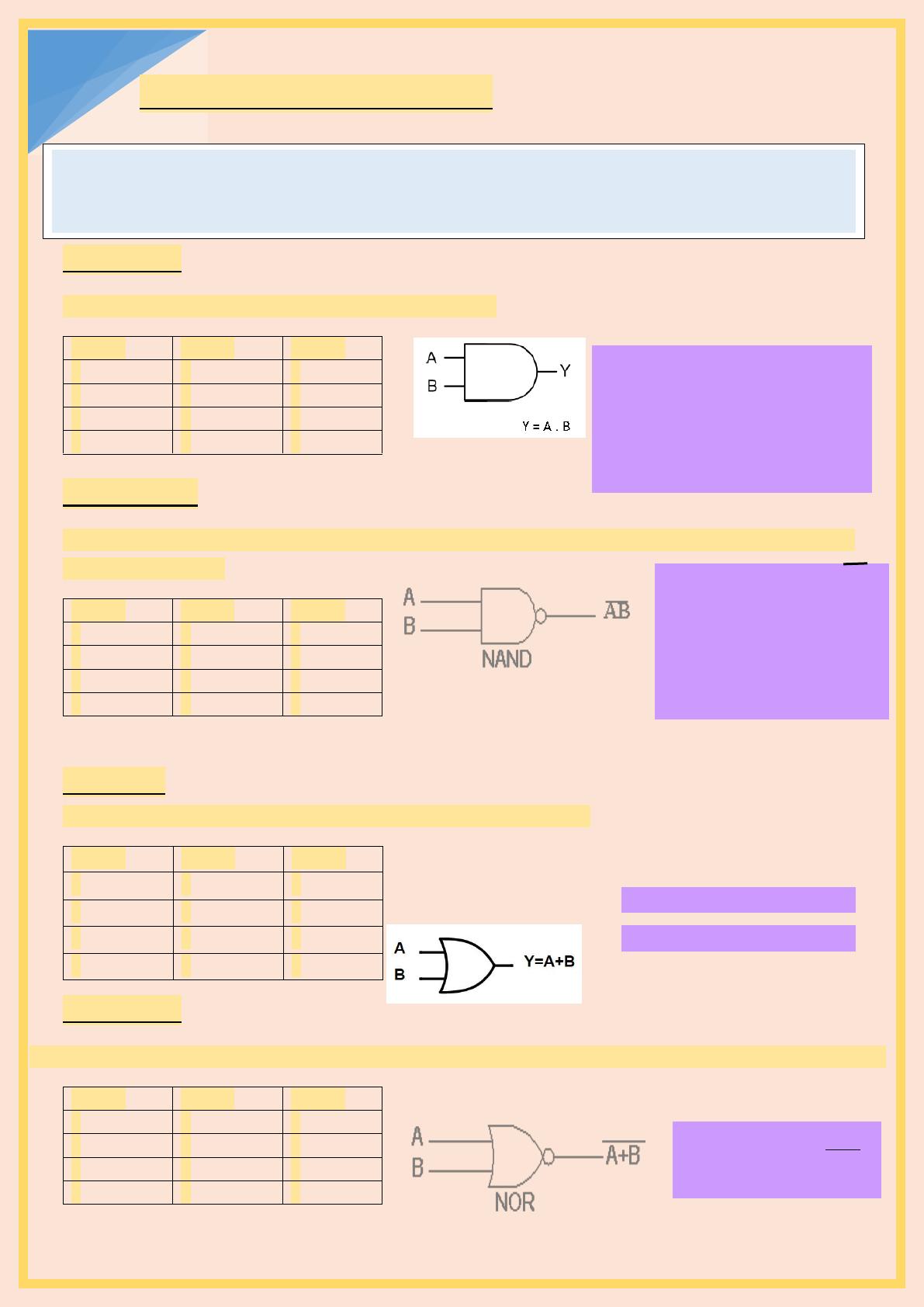

Logic Gates and truth tables
AND Gates:
When at all inputs are high (1) the output will be high (1).
Input X
Input Y
Output
1
1
1
1
0
0
0
1
0
0
0
0
NAND Gates:
“NOT AND”, hence when at least one input is high (1) the output is high(1). If both inputs are high (1) the
the output is low (0).
Input X
Input Y
Output
1
1
0
1
0
1
0
1
1
0
0
1
OR Gates:
When one or more of the inputs is high (1) the output will be high (1).
Input X
Input Y
Output
1
1
1
1
0
1
0
1
1
0
0
0
NOR Gates:
When any one of the inputs is high (1), the output will be low (0). If both inputs are low (0), the output is high (1).
Input X
Input Y
Output
1
1
0
1
0
0
0
1
0
0
0
1
A dot (.) is used to show the AND
operation i.e. A.B - Bear in mind
that this dot is sometimes
omitted i.e. AB
It is represented as A.B (or AB)
with a bar over the top. In the
exam we put ¬ with the object
of interest in brackets AFTER the
¬ instead of the bar. NOT is
applied after AND.
It is represented as A + B.
Be careful + means OR.
These are devices that implement a Boolean function, that is they perform logical operations on one or
more logical inputs to produce a single logical output. Every terminal has one of the two binary
conditions: low (0) and high (1) represented by different voltage levels.
It is represented as NOT(A or
B), hence ¬(A + B), or A + B
Same as an OR gate with a NOT gate
2

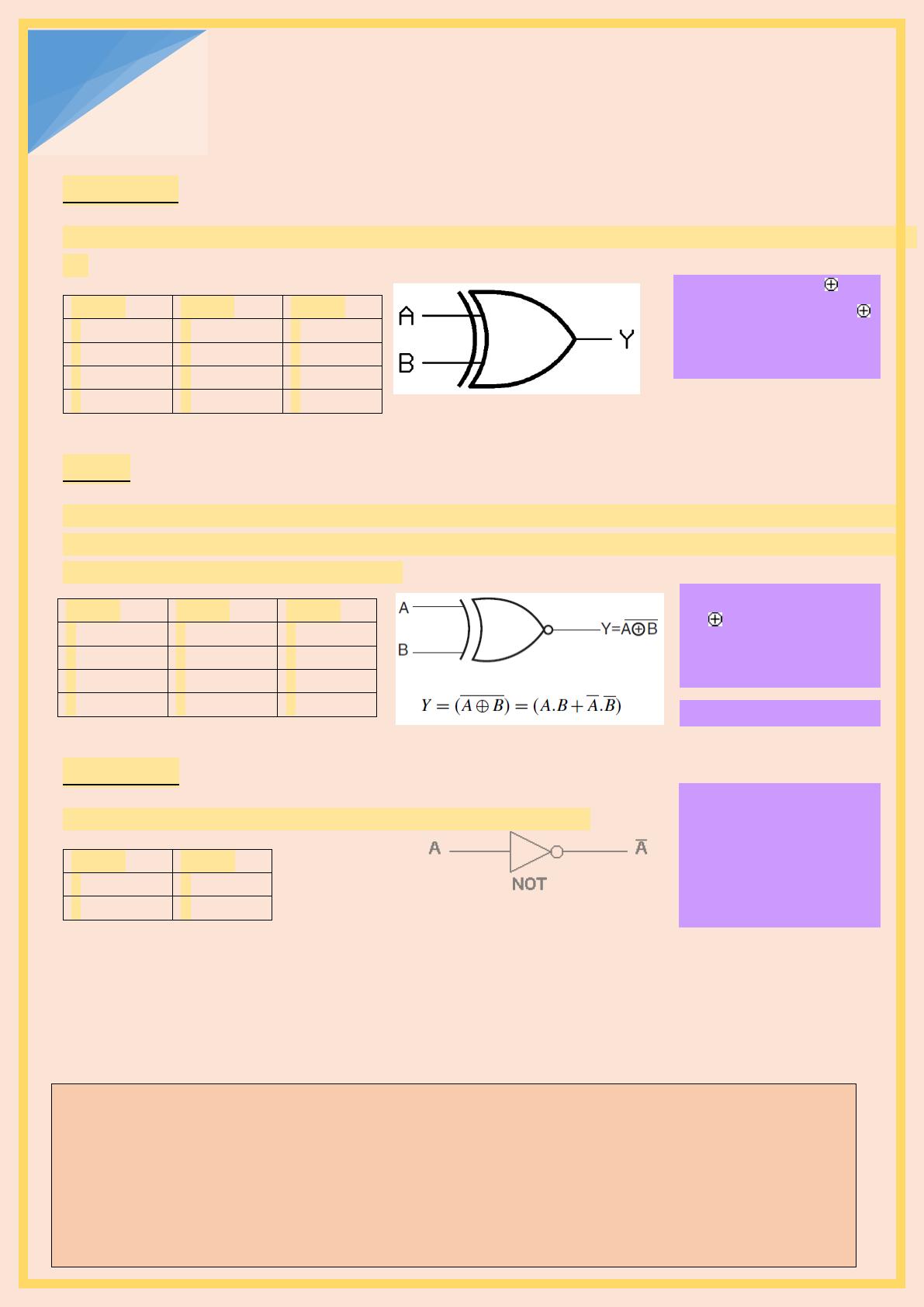

XOR Gates:
`Exclusive Or gates’. These will only ever give an output that is high (1) when either, not both of the inputs is high
(1).
Input X
Input Y
Output
1
1
0
1
0
1
0
1
1
0
0
0
XNOR:
`Exclusive NOT OR’, does the opposite to an XOR gate. It will give a low (0) output if either, but not both, of the
inputs is high (1). Only when the inputs are the same state (both 1 or both 0) will the output be high (1). If only
one input is high then the output will be low.
NOT Gates:
Sometimes called an inverter. The output is the opposite to the input.
Input X
Output
1
0
0
1
Input X
Input Y
Output
1
1
1
1
0
0
0
1
0
0
0
1
It is represented as A B.
Where the encircled plus ` ’
is sued to show the XOR
operation.
It is represented as
¬(A B). Where the XOR
function is applied before
the NOT operation.
Sometimes = A.B + (¬A.¬B)
Same as an AND gate paralleled with an AND gate that has both inputs inverted by 2 NOT gates. This is then fed into an OR gate.
It is represented as
¬ followed by item(s) of
interest in brackets. Or by a
bar drawn over items being
inverted.
A NOT gate can be created with NAND gate where the inputs are linked so identical. Therefore when the single input is low (0), it
creates two identical conditions - 2 low inputs (0). The output is high Since at least one low input is required for a high output
(1).
When the single input is high (1), two identical high inputs are created (1). The output is low since at least one input needs to be
low (0) for a high (1) output.
Boolean algebra = The branch of algebra where the values of the variables are the truth values of true (1) and false
(0). The main operations are addition and multiplication and the multiplicative inverse function.
+ or V means add (OR)
. or ^ Means multiply (AND)
¬ Means invert (raise by the power of -1) (multiplicative inverse function.)
3

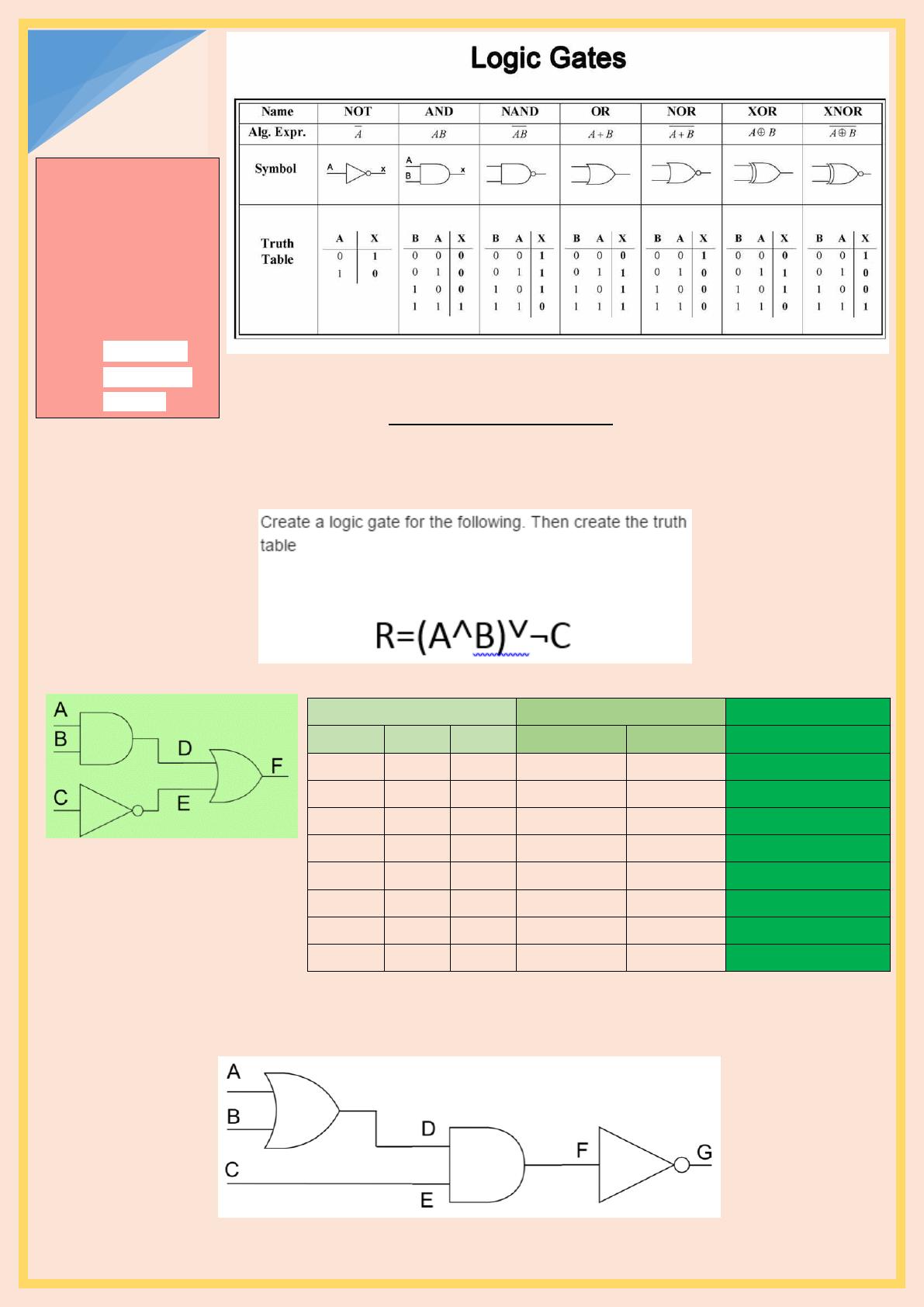

Logic gate diagrams
Logic gates may be combined to form logic gate diagrams that perform more complicated logical operations.
Truth tables are used to show the states of each terminal and hence the logical operations.
e.g.
e.g. 2) What is the algebraic expression, where variables are denoted with Boolean logic for the following
logic gate diagram? Give the truth table for this.
Inputs
Intermediate outputs
Output
A
B
C
D
E
R
1
1
1
1
0
1
1
1
0
1
1
1
0
0
0
0
1
1
0
0
1
0
0
0
0
1
1
0
0
0
1
0
1
0
0
0
1
0
0
0
1
1
0
1
0
0
1
1
The exam board only
ever uses:
^ = AND
V = OR
¬ = NOT
() = brackets
≡ means can
be written as
(identity)
/ 7
