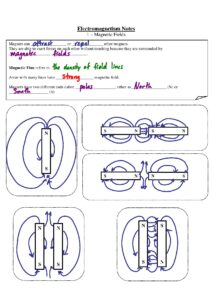

Electromagnetism Notes
1 – Magnetic Fields

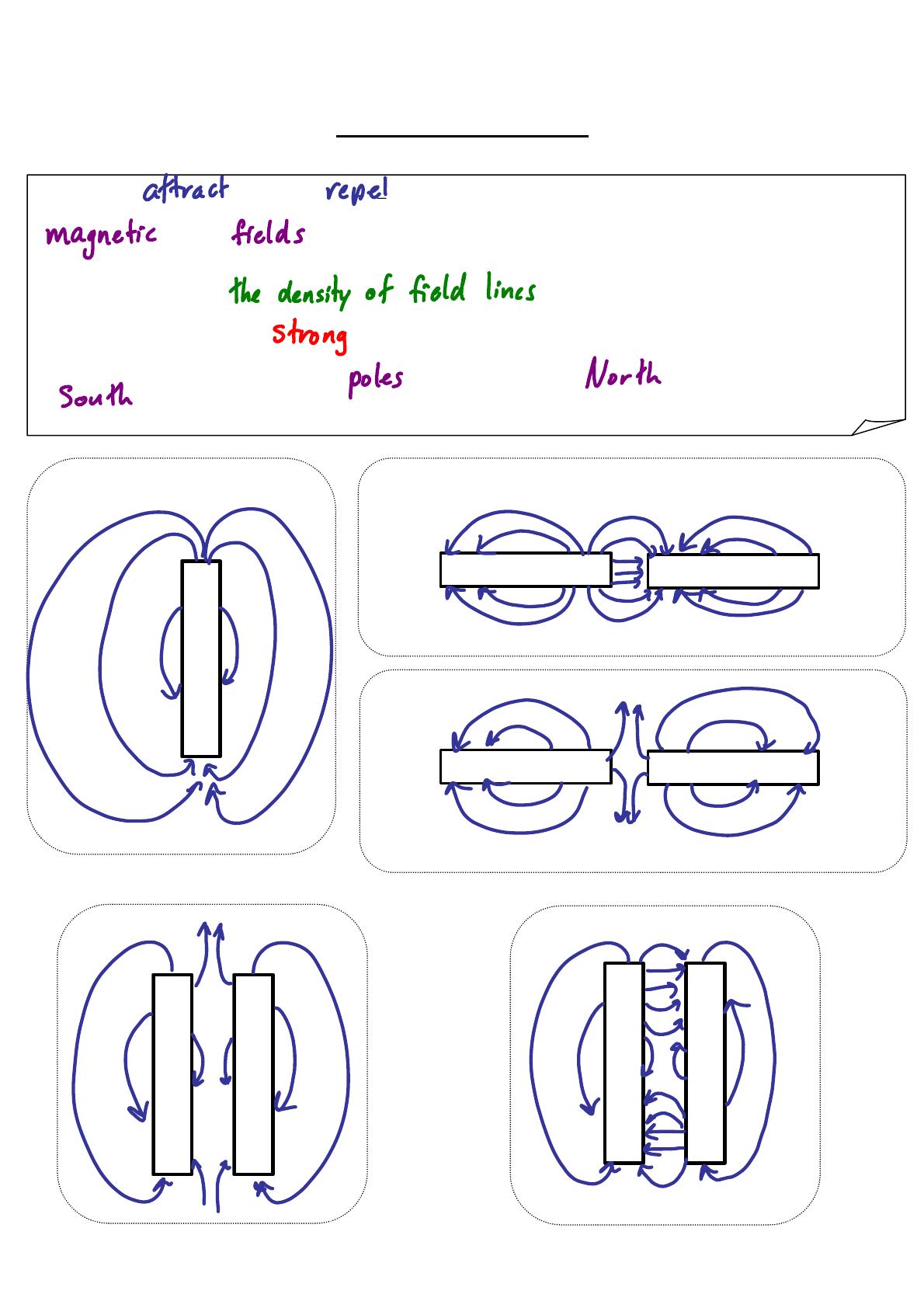

Magnets can _________________ or _______________ other magnets.
They are able to exert forces on each other without touching because they are surrounded by
____________________ _________________.
Magnetic Flux refers to…
Areas with many lines have __________________ magnetic field.
Magnets have two different ends called ___________________, either as_________________ (N) or
___________________ (S).
N
S
N
S
N
S
N S
N S
N S N S
N
S
N
S
It is important to note that magnetic fields are ____________________ and therefore we need to represent the
lines as…
In fact we define the direction of a magnetic field as …
This is very much like electric charges; however there is a very important difference between these two.
Electric charges can be…
Whereas magnetic poles…
We can sum up the behaviour of
interacting magnetic fields:
(1)
(2)

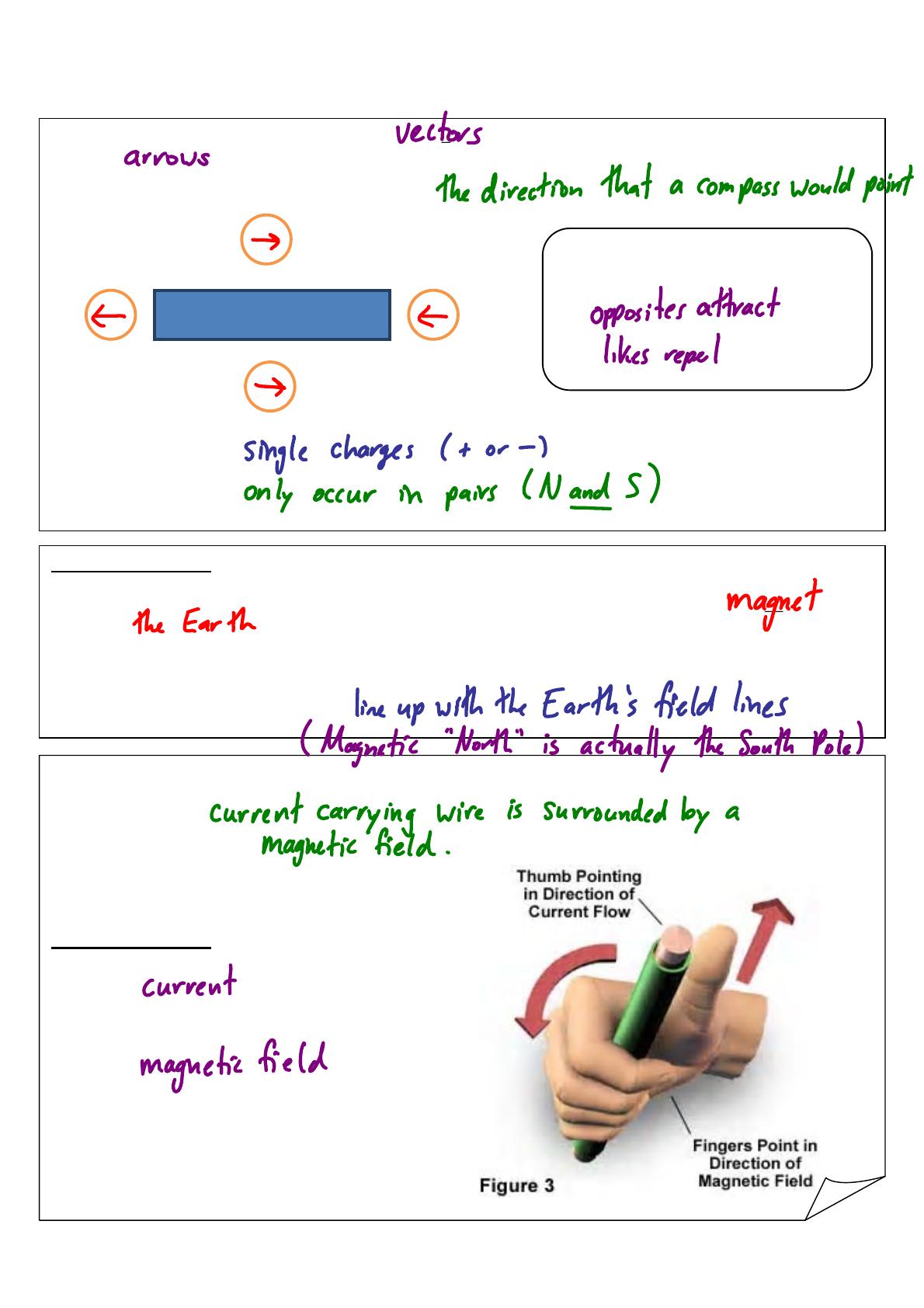

Consider a compass:
A compass is useful because its needle always points north. This is because the needle is a ________________
and so is ______________.
Yeah fine but WHY does it point north?
Well, the north pole of the compass will…
Well that’s all very well for magnetism, but where does the electro come in?
It turns out that any….
In fact a current carrying wire will have a very regular
magnetic field around it as predicted by the:
1
st
Right Hand Rule:
Thumb:
Fingers:
N
S
Often we will represent a current carrying wire simply as though you were looking at it end on. In this case we
simply draw it as a circle. To indicate the direction of current flow we draw a ____ if it is in to the page and a
____ if it is out of the page.
If it helps to remember which is which think of an ________________!
Note that the compass always points…
+
+
+
+
-
-
-
-

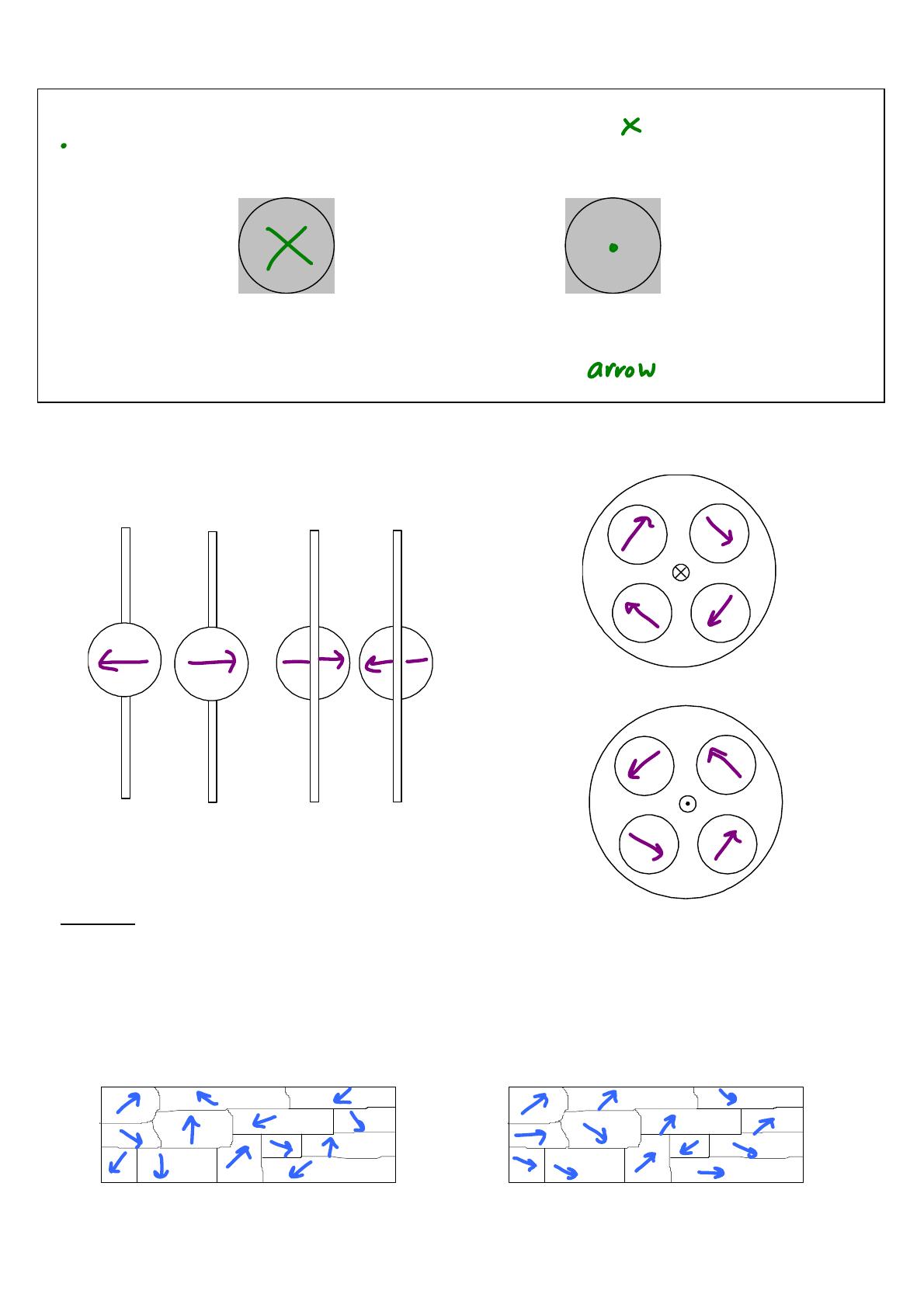

Below shows current carrying wires (lines) and compasses (circles). Draw arrows to show
which direction the compasses will point.
Domains:
We have seen that the movement of electrons can create a magnetic field, but how does this
apply to permanent magnets like bar magnets?
Certain metals (iron, nickel and cobalt) have…
In a piece of these metals the spins of unpaired electrons align in areas called domains. In an
unmagnetized piece of metal the domains are lined up randomly. A magnet is created when
these domains are aligned in one direction.
