UNIT 1: Boolean Algebra & Logic Circuits
Q1. Draw logic symbols and truth tables for the basic logic gates and universal gates.
Why are NAND and NOR called universal gates?
Q2. Convert the following numbers:
(a) (10110)2 to decimal.
(b) (157)8 to binary.
(c) (93)10 to hexadec.
Q3. Express the Boolean function 𝐹(𝐴, 𝐵, 𝐶) = Σ𝑚(1,3,5,7) in SOP and POS forms.
Q4. Simplify the following Boolean expression using Boolean algebra: 𝐹 = 𝐴𝐵
ˉ
+ 𝐴𝐵 + 𝐴
ˉ
𝐵
Mention the law used at each step.
Q5. Simplify the following function using a 3-variable K-map: 𝐹(𝐴, 𝐵, 𝐶) = Σ𝑚(0,1,3,5,7).
Q6. Simplify using a 4-variable K-map: 𝐹
(
𝐴, 𝐵, 𝐶, 𝐷
)
= Σ𝑚
(
2,3,6,7,10,11,14,15
)
.
UNIT 2: Combinational Logic Circuits
Q7. Design a half adder and full adder. Explain the concept of Carry in binary addition.
Q8. Design a half subtractor and full subtractor. Explain the concept of borrow in binary
subtraction.
Q9. Design a 4-bit binary to Gray code converter using K-maps and logic gates.
State one advantage of Gray code.
Q10. Implement the Boolean function 𝐹(𝐴, 𝐵, 𝐶) = Σ𝑚(1,2,6,7) using a 4:1 multiplexer.
Q11. Explain the working of a 4-bit magnitude comparator.

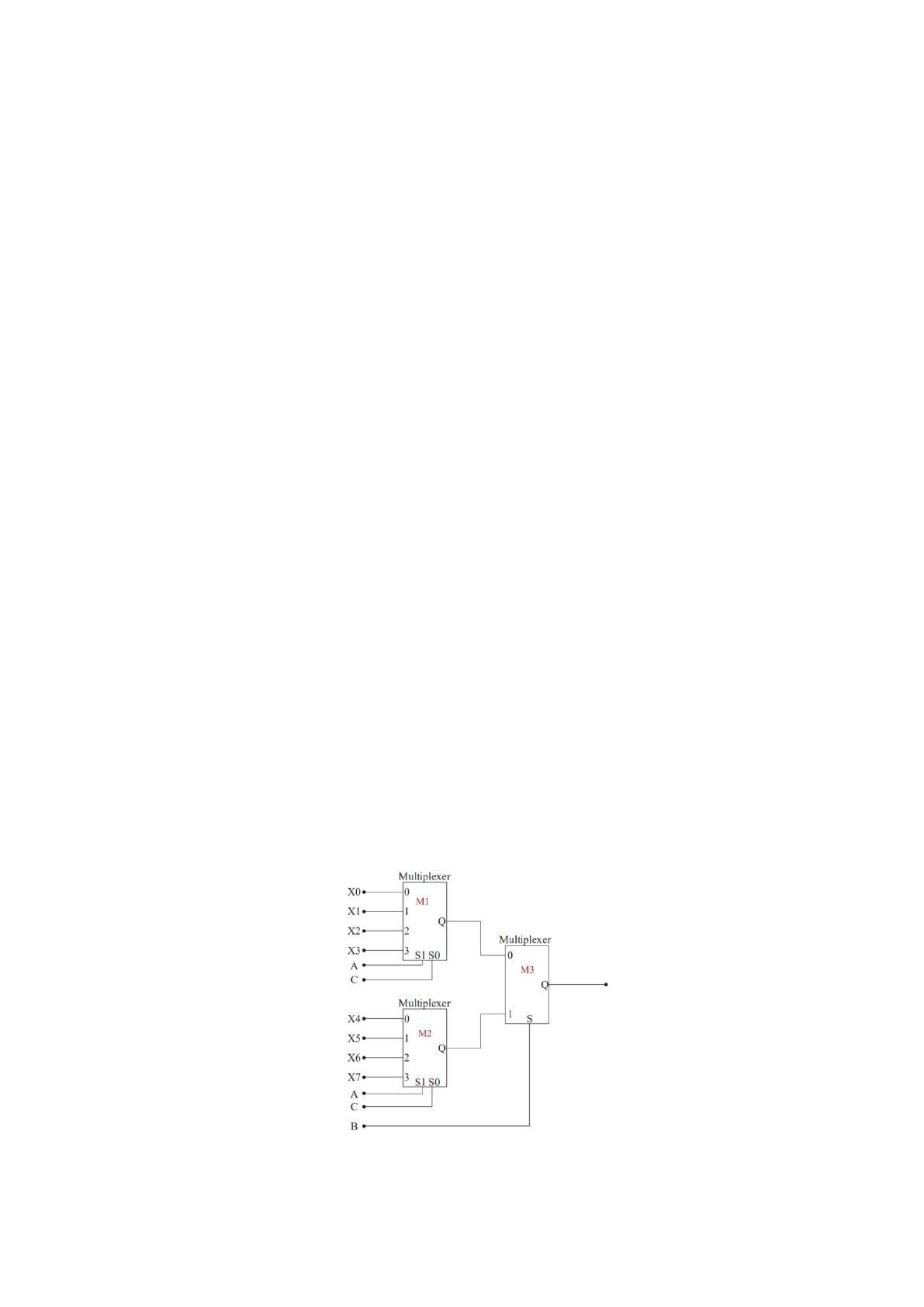

Q12. What will be the Final output of the MUX circuit given below if X1, X2, X5, X6 = 1; &
X0, X3, X4, X7=0;
Q13. Implement the following logic circuit using a 3:8 line decoder.
F1 = minterms(1,2,7), F2 = minterms(2,3,4), F3 = minterms(0,4,6).
UNIT 3: Sequential Logic Circuits
Q14. Define sequential logic circuits. Differentiate between combinational and sequential
circuits.
Q15. Explain the working of SR, JK, D, and T flip-flops with truth tables. Why is JK flip-flop
preferred over SR flip-flop?
Q16. Convert a JK flip-flop into:
(a) D flip-flop. (b) T flip-flop.
Q17. Implement T to J-K and SR to J-K Flipflop.
Q18. Design a 2-bit asynchronous up counter using JK flip-flops. Draw timing diagrams.
Q19. Design a synchronous 3-bit up counter using D flip-flops.
Q20. Design a random sequence generator using JK flip-flops for the sequence:
001 → 011 → 101 → 111 → 001.
Q21. A Binary ripple counter is used to count upto (2047)10, How many FF’s will be required
for its designing.

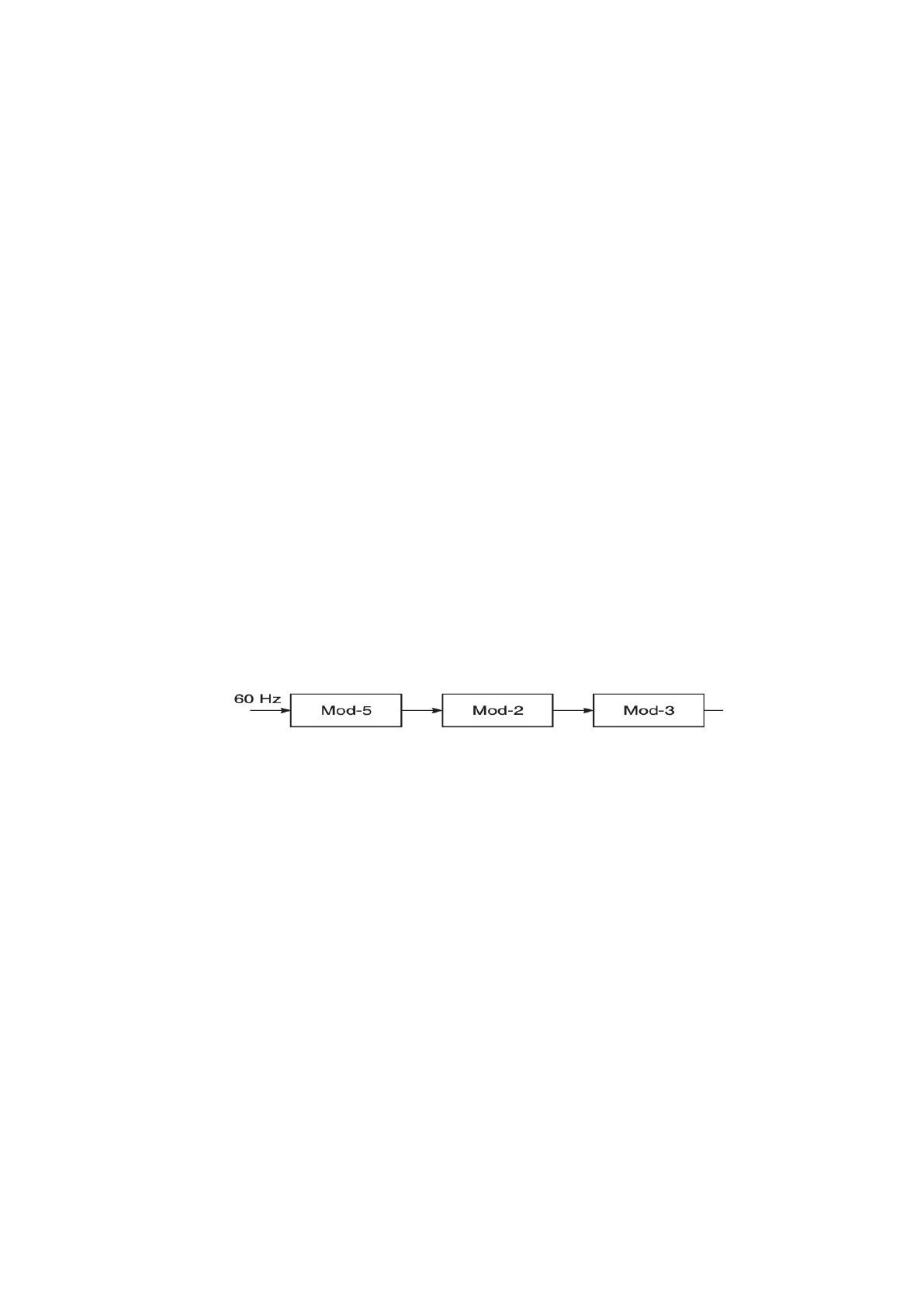

Q22. For the communication system given below, what will be the output frequency?
Q23. Define the terms: a). Setup time, b). Hold time, c). Negative edge triggered circuit,
d). Propagation Delay, e). Flipflop, f). Max. clock Frequency.
UNIT 4: Counters
Q24. Design a 3 bit asynchronous up/down counter.
Q25. Design an asynchronous MOD-7 up counter using J-K FF. Show the reset logic clearly.
Q26. Design an asynchronous MOD-4 down counter using T FF. Show the reset logic clearly.
Q27. Design a 2-bit synchronous up/down counter using J-K FF.
Q28. Design a type T counter that goes through states 0, 3, 5, 6, 0, …, Is the counter self-
starting? If it’s not a self-starting, then modify the circuit.
Q29. Design a type D counter that goes through states 0, 1, 2, 4, 0, … The unused/ unwanted
states must go to zero(000) on next clock pulse.
Q30. Design a J-K counter that goes through states 3, 4, 6, 7 and 3… . Is the counter self-
starting? Modify the circuit such that if it goes to an invalid state it comes back to state 3.
