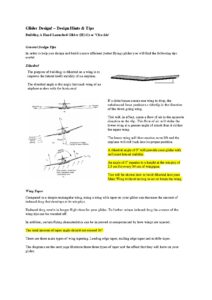

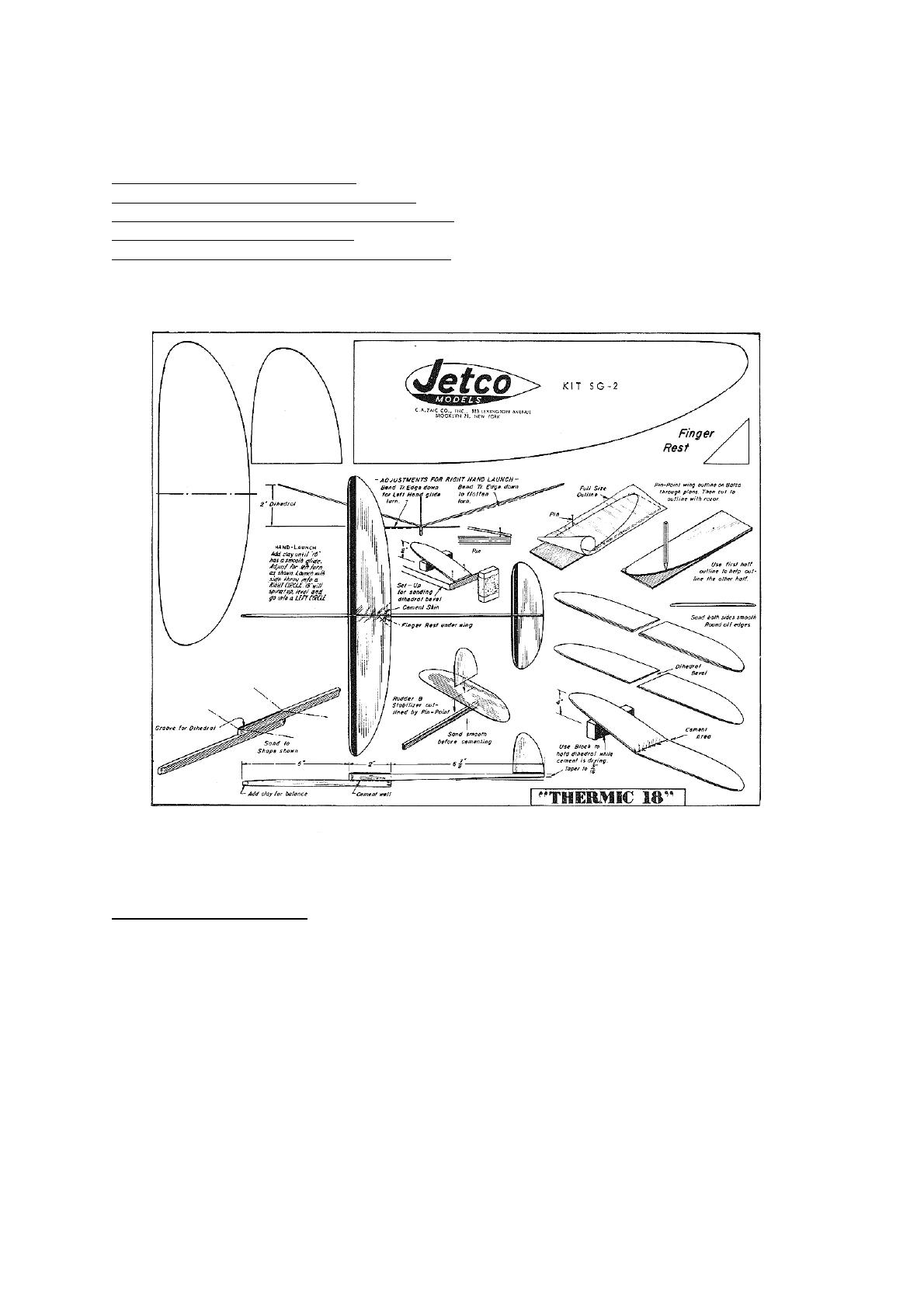

Glider Design! – Design Hints & Tips
Building A Hand Launched Glider (HLG) or 'Chuckie'
General Design Tips
In order to help you design and build a more efficient (better flying) glider you will find the following tips
useful.
Dihedral

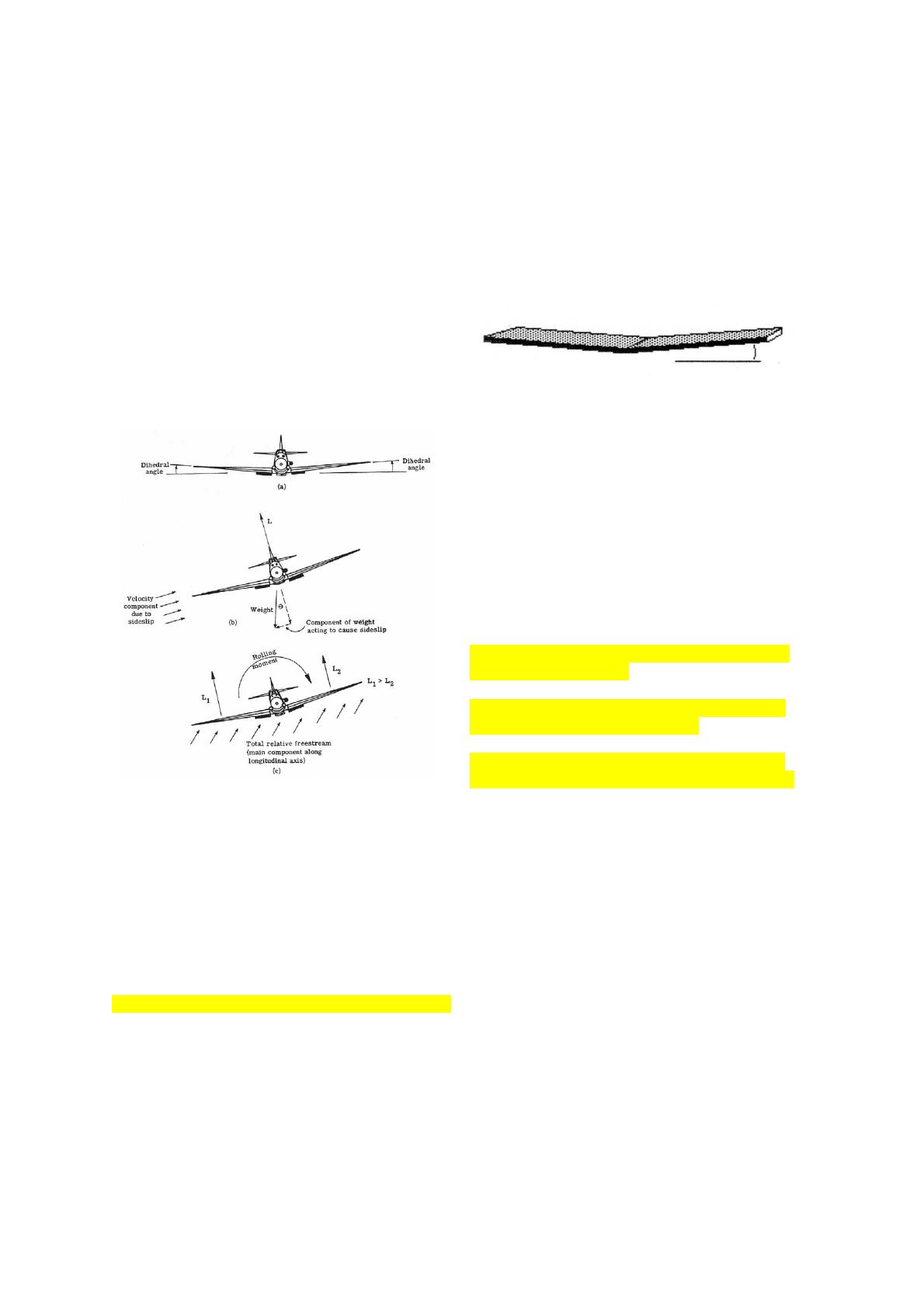

The purpose of building in dihedral on a wing is to
improve the lateral (roll) stability of an airplane.
The dihedral angle is the angle that each wing of an
airplane makes with the horizontal
If a disturbance causes one wing to drop, the
unbalanced force produces a sideslip in the direction
of the down going wing.
This will, in effect, cause a flow of air in the opposite
direction to the slip. This flow of air will strike the
lower wing at a greater angle of attack than it strikes
the upper wing.
The lower wing will thus receive more lift and the
airplane will roll back into its proper position.
A dihedral angle of 5
o
will provide your glider with
sufficient lateral stability.
An angle of 5
o
equates to a height at the wingtip of
2.5 cm for every 30 cm of wingspan.
You will be shown how to build dihedral into your
Main Wing without having to cut or break the wing.
Wing Taper
Compared to a simple rectangular wing, using a wing with taper on your glider can decrease the amount of
induced drag that develops at its wingtips.
Reduced drag results in longer flight time for your glider. To further reduce induced drag the corners of the
wing tips can be rounded off.
In addition, certain flying characteristics can be improved or compromised by how wings are tapered.
The total amount of taper angle should not exceed 10
o
.

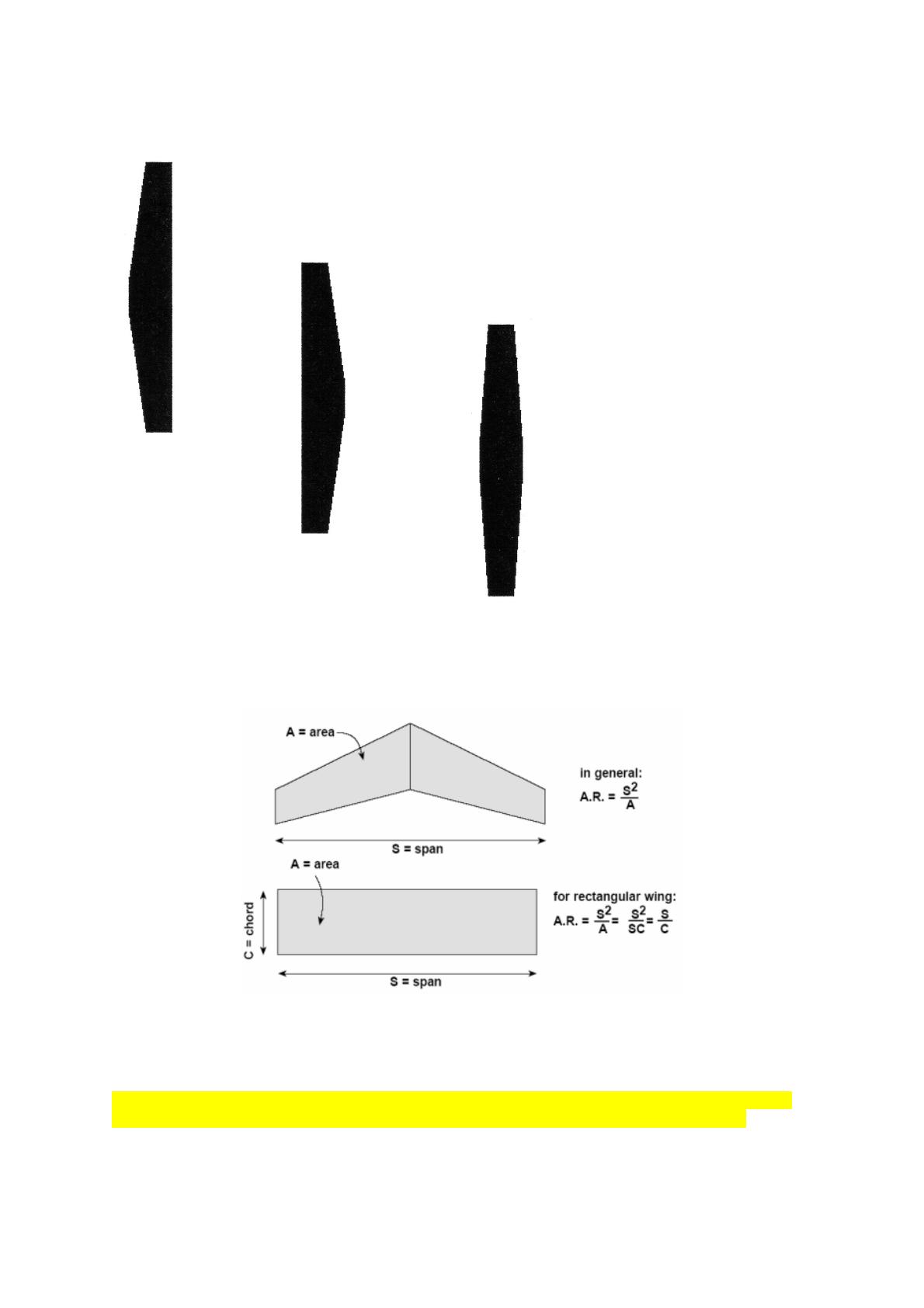

There are three main types of wing tapering. Leading edge taper, trailing edge taper and middle taper.
The diagrams on the next page illustrate these three types of taper and the effect that they will have on your
glider.
Leading Edge Taper
€
nose
← # #
Trailing Edge Taper
€
nose
← # #
This type of taper will make the glider more stable and give it
straighter tracking but make it less manoeuvrable.
Middle Taper
€
nose
← # #
This type of taper often results in the
best balance of stability and
manoeuvrability for overall
performance.
Aspect Ratio
The aspect ratio (AR) of a wing is defined to be the square of the span (s), divided by the wing area (A). Aspect
ratio is a measure of how long and slender a wing is from tip to tip. For a rectangular wing, this reduces to the
ratio of the span to the chord length (c):
High aspect ratio wings have long spans (like high performance gliders), while low aspect ratio wings have
either short spans or thick chords (like the Space Shuttle). Gliders have a high aspect ratio because the drag of
the aircraft depends on this parameter. A higher aspect ratio gives a lower drag, a higher lift to drag ratio, and a
better glide angle.
When designing your glider you should aim for its aspect ratio to be: !"# $ %" &" $ '"#. If the A.R. is greater
than 7.5 then the force applied to your glider whilst launching it might result in the wing breaking off!
In preparing these notes the following sources were referenced.
Designing Model Gliders by Frank Zaic, by Model Aeronautic Publications, 1944
http://www.f4bscale.worldonline.co.uk/hand.htm
http://www.gryffinaero.com/models/ffpages/tips/hlgtips.html
http://www.modelresearchlabs.com/hand_launch_glider_airfoils.htm
http://www.seeds2lrn.com/airIndex.html#gliders
http://resources.yesican-science.ca/100_years/unit1_flight1g06.html
Glider Design! – Tutorial
With these ideas in mind you are ready to start designing your own hand launched glider (HLG) or “chuckie”
using the computer program Glider Design.
Balsa Wood
You will be provided with the following pieces of balsa wood with which to construct your glider.
• 1.5 mm x 75 mm x 915 mm or 2.0 mm x 75 mm x 915 mm sheet balsa.
Your wing, stabiliser and rudder are all to be made from this sheet.
• 6.5 mm x 6.5 mm x 45 mm balsa stick.
Your fuselage will be made from this.
