The document contains 25 multiple-choice questions (MCQs) focused on Venn diagrams and Boolean algebra, along with an answer key. Each question tests knowledge on set operations, Boolean expressions, and logic circuit outputs. The answer key provides the correct responses for each question.
Venn Diagram and Boolean Algebra - 25 MCQs with Answer Key

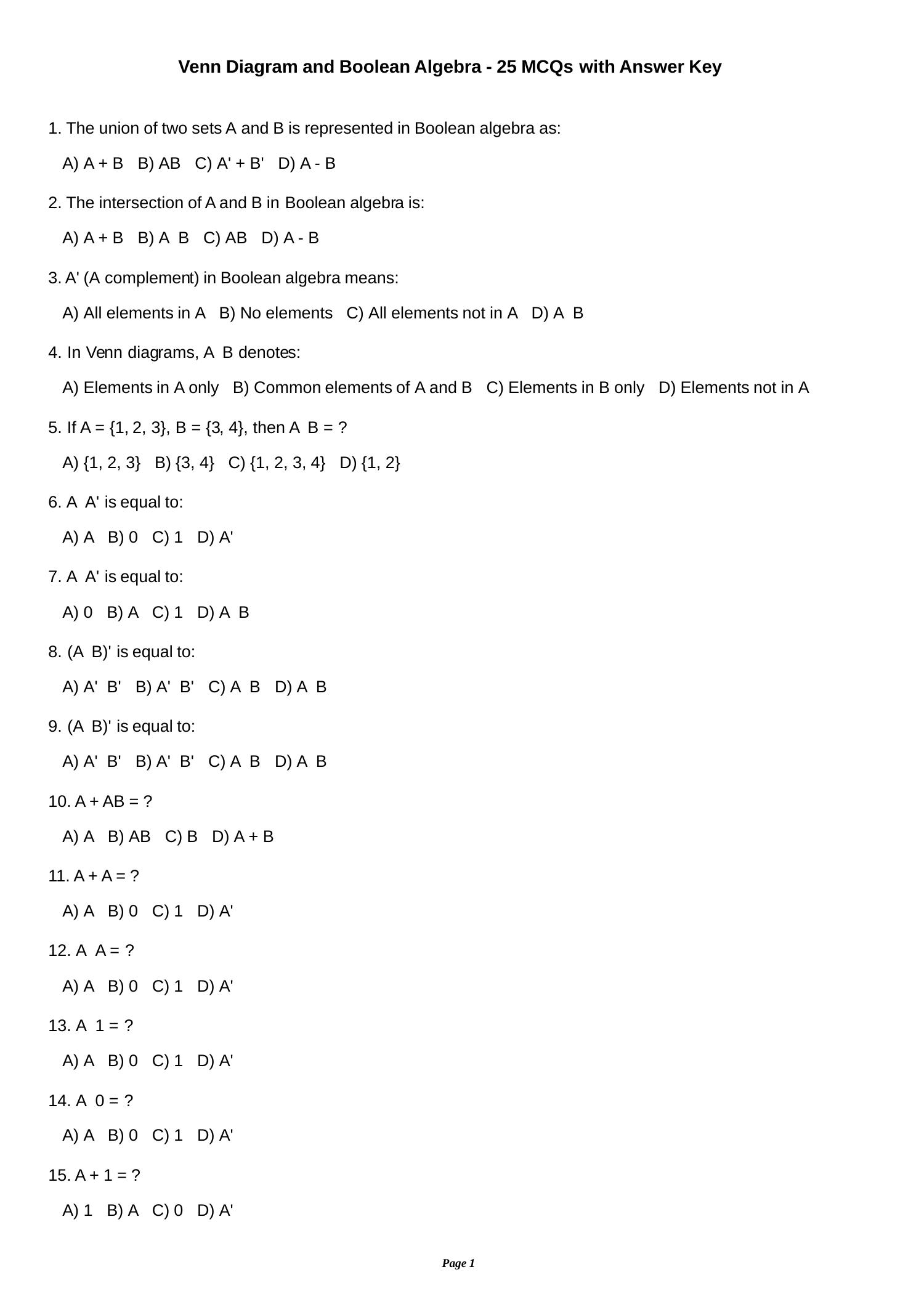

1. The union of two sets A and B is represented in Boolean algebra as:
A) A + B B) AB C) A' + B' D) A - B
2. The intersection of A and B in Boolean algebra is:
A) A + B B) A B C) AB D) A - B
3. A' (A complement) in Boolean algebra means:
A) All elements in A B) No elements C) All elements not in A D) A B
4. In Venn diagrams, A B denotes:
A) Elements in A only B) Common elements of A and B C) Elements in B only D) Elements not in A
5. If A = {1, 2, 3}, B = {3, 4}, then A B = ?
A) {1, 2, 3} B) {3, 4} C) {1, 2, 3, 4} D) {1, 2}
6. A A' is equal to:
A) A B) 0 C) 1 D) A'
7. A A' is equal to:
A) 0 B) A C) 1 D) A B
8. (A B)' is equal to:
A) A' B' B) A' B' C) A B D) A B
9. (A B)' is equal to:
A) A' B' B) A' B' C) A B D) A B
10. A + AB = ?
A) A B) AB C) B D) A + B
11. A + A = ?
A) A B) 0 C) 1 D) A'
12. A A = ?
A) A B) 0 C) 1 D) A'
13. A 1 = ?
A) A B) 0 C) 1 D) A'
14. A 0 = ?
A) A B) 0 C) 1 D) A'
15. A + 1 = ?
A) 1 B) A C) 0 D) A'
Page 1

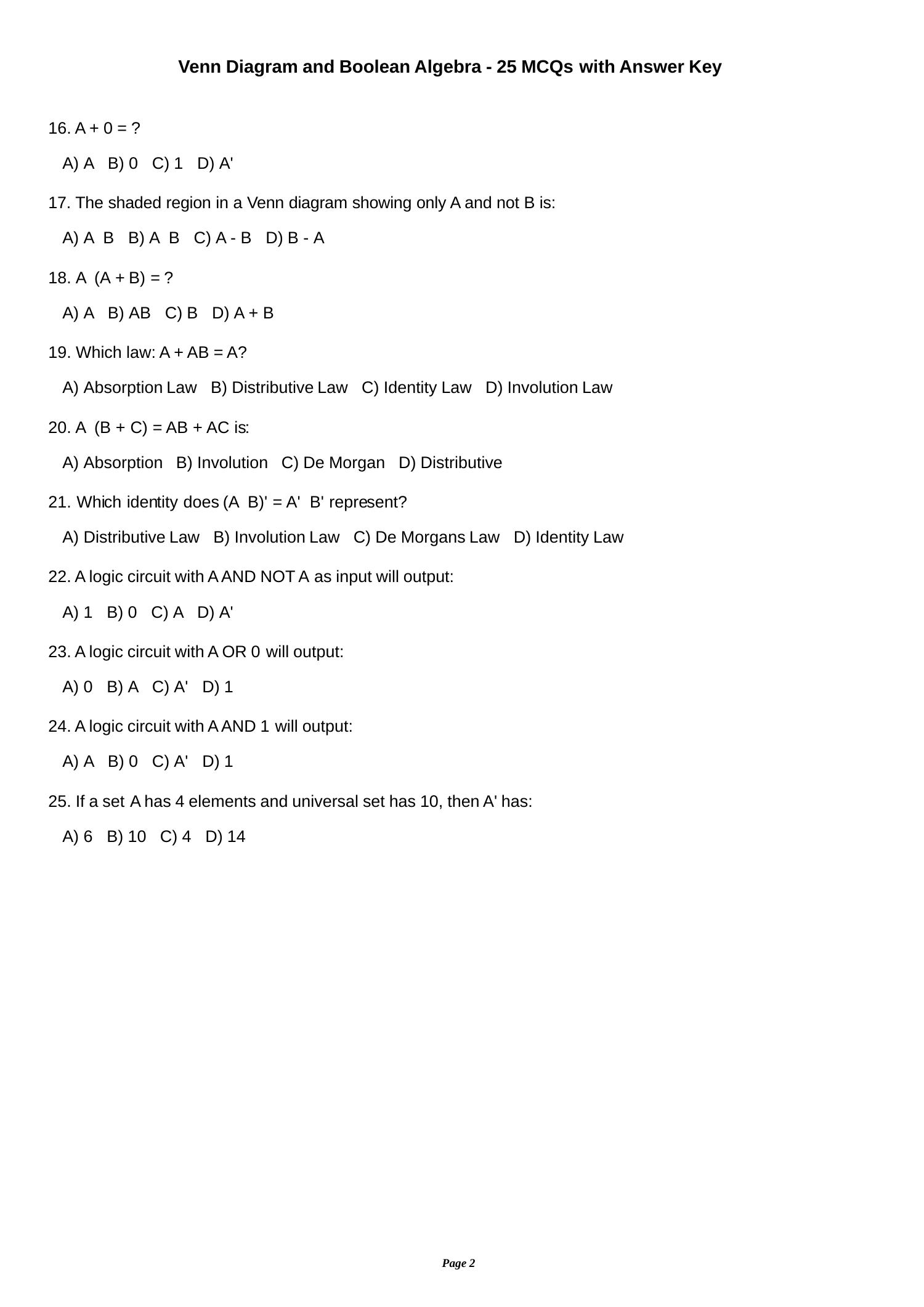

Venn Diagram and Boolean Algebra - 25 MCQs with Answer Key
16. A + 0 = ?
A) A B) 0 C) 1 D) A'
17. The shaded region in a Venn diagram showing only A and not B is:
A) A B B) A B C) A - B D) B - A
18. A (A + B) = ?
A) A B) AB C) B D) A + B
19. Which law: A + AB = A?
A) Absorption Law B) Distributive Law C) Identity Law D) Involution Law
20. A (B + C) = AB + AC is:
A) Absorption B) Involution C) De Morgan D) Distributive
21. Which identity does (A B)' = A' B' represent?
A) Distributive Law B) Involution Law C) De Morgans Law D) Identity Law
22. A logic circuit with A AND NOT A as input will output:
A) 1 B) 0 C) A D) A'
23. A logic circuit with A OR 0 will output:
A) 0 B) A C) A' D) 1
24. A logic circuit with A AND 1 will output:
A) A B) 0 C) A' D) 1
25. If a set A has 4 elements and universal set has 10, then A' has:
A) 6 B) 10 C) 4 D) 14
Page 2
Venn Diagram and Boolean Algebra - 25 MCQs with Answer Key

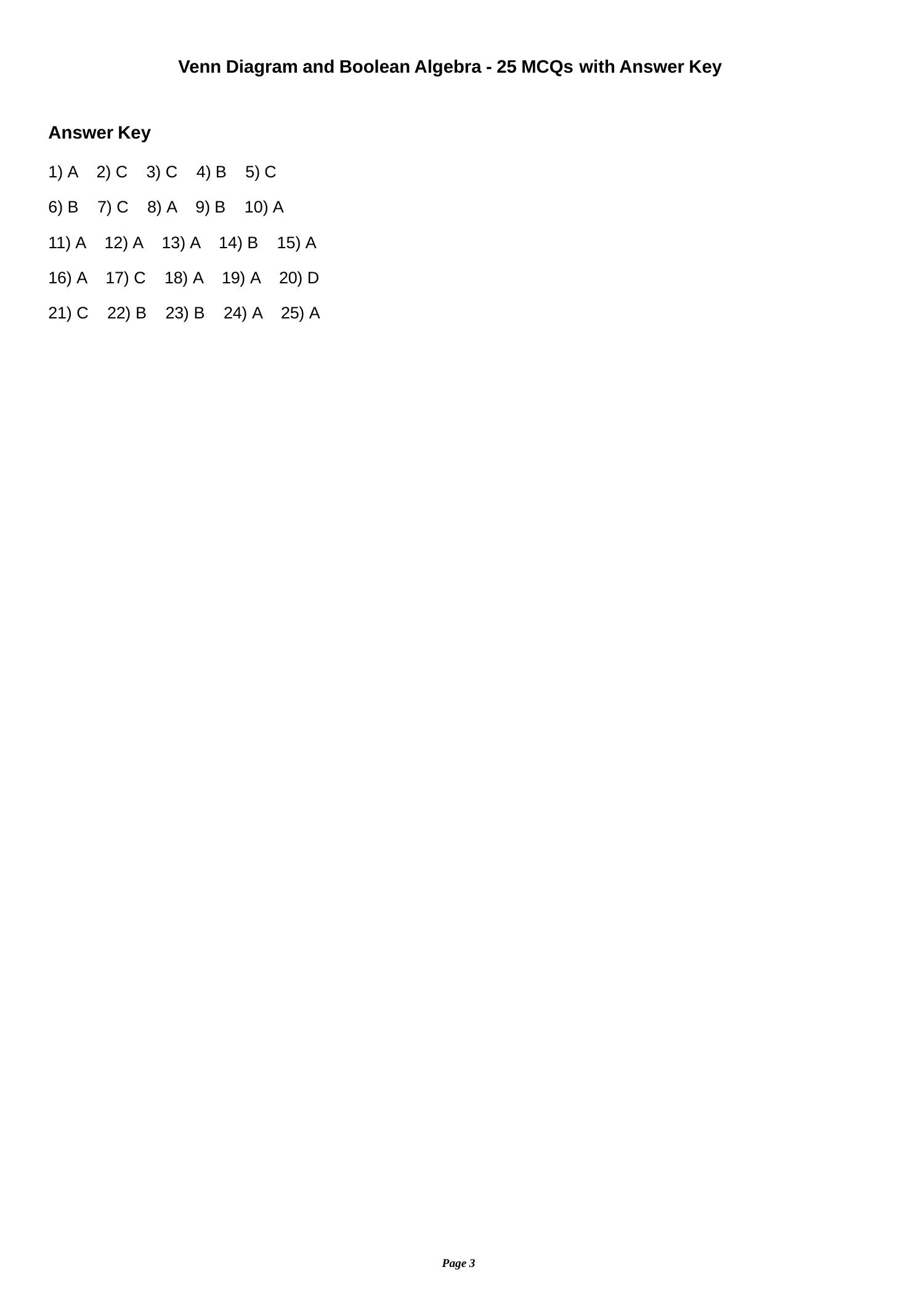

Answer Key
1) A 2) C 3) C 4) B 5) C
6) B 7) C 8) A 9) B 10) A
11) A 12) A 13) A 14) B 15) A
16) A 17) C 18) A 19) A 20) D
21) C 22) B 23) B 24) A 25) A
Page 3
End of Document
